Paul A. Romsky Jr. - Fiero GT Sensor Tester
***************
* WARNING *
***************
Never operate a vehicle while using the Fiero GT Sensor Tester or Adapters
(Tool) without an assistant. The driver must always have full
attention on driving, therefore, an assistant that is not driving is
required to operate.
****************
* NOTICE *
****************
The author of the Fiero GT Sensor Tester and Adapters (Tool) assumes no
liability for its use. The users assume all liability for any damages or
injury resulting from the use of this Tool.
****************
* NOTICE *
****************
The GUI will run only on a PC with Microsoft Windows 7 and up
operating systems.
This is NOT and Android Application nor will it run on Apple
operating systems.
The following links are screen shots of the Sensor Tester Tool developed for Fieros.

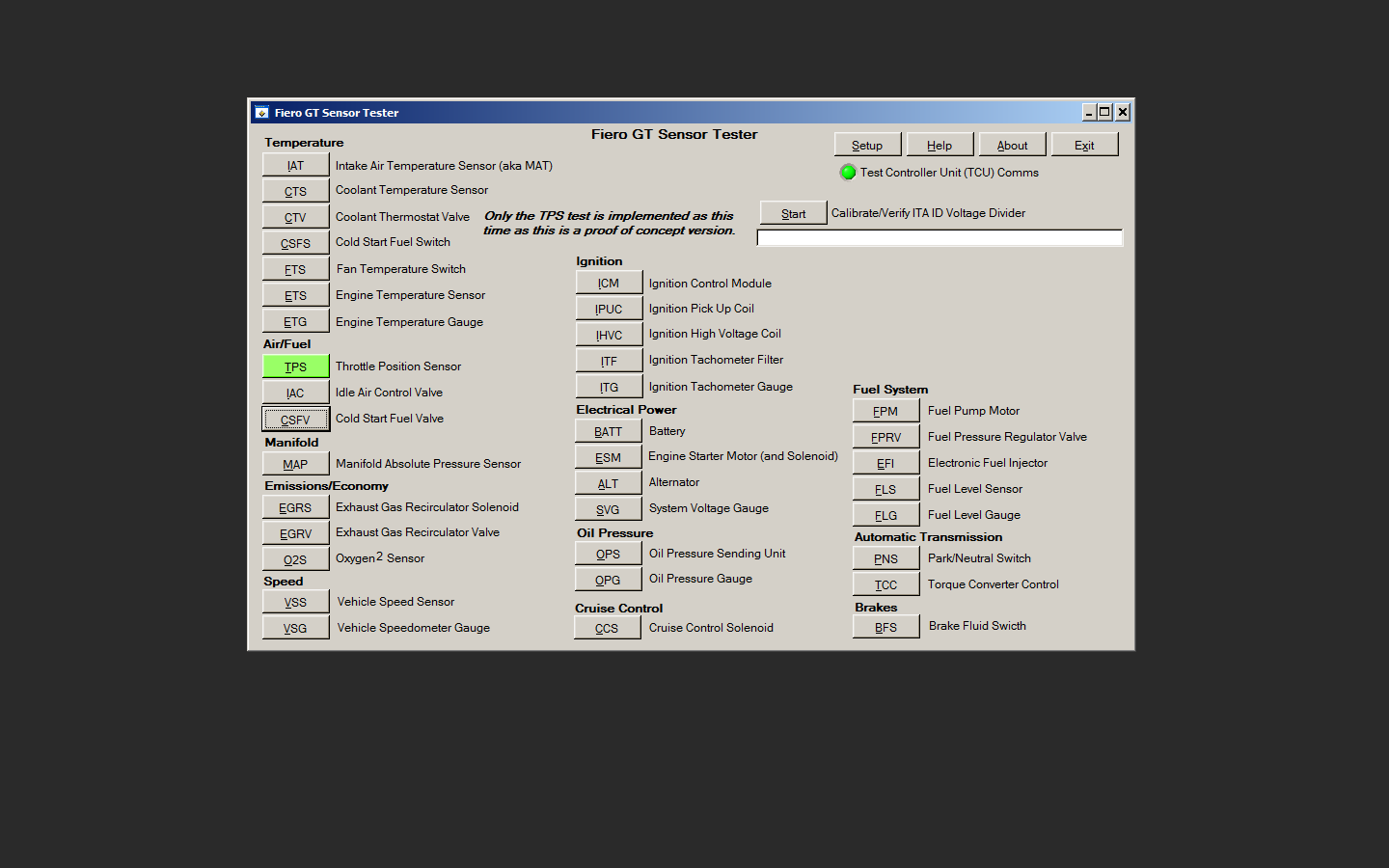

1987 Fiero GT Sensor Tester - Main Panel

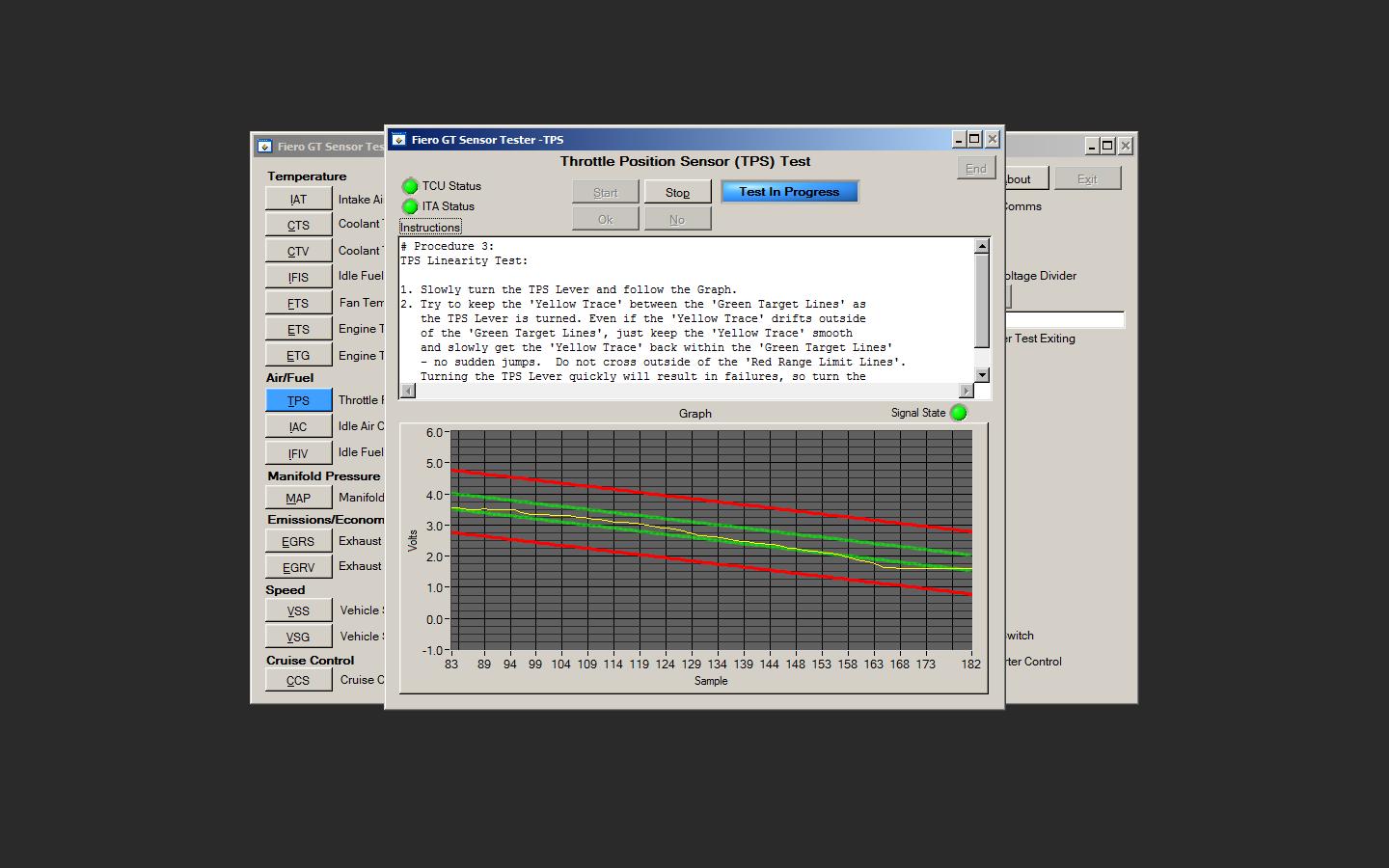

1987 Fiero GT Sensor Tester - TPS Test
Coming Soon: Fiero GT Sensor Tester Instructional Video
Version 1.0.0 Dated 26 OCT 2023 4:34 PM EDT - Latest GUI Code and Adapter Design Files.
Rev 1.0.0 Description:
Not Yet Released
The GUI Installer as well as the design files for the Test Controller Unit (TCU) and Interface Test Adapters (ITAs) are included in the download below:
Download the Fiero Sensor Tester GUI V1.0.0
This is a photo of the Controller Test Unit (TCU), the Interface Test Adpaters (ITAs) plug into the TCU.
The Fiero Sensor Tester software is free. But you must build your own Test Controller Unit (TCU) based on the Arduino UNO R3 and the various Iterface Test Adpaters (ITAs) based on Arduino UNO Prototype Shields - details on how to build these are included with the code download.
Download and Installation Instructions:
